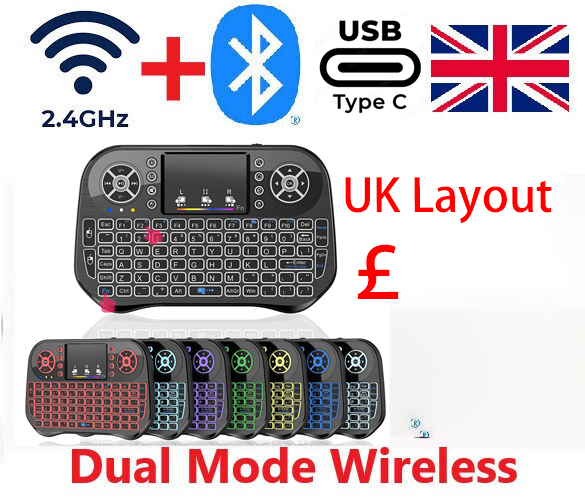

UK Layout with '£'
USB-C/TYPE C Charging
TO ENABLE BACKLIT KEYBOARD OPERATION
1 - PRESS FN + F2 TO ENABLE BACKLIGHT 3 COLOURS
2 - THEN PRESS AND HOLD IN FN THEN USE 2 FINGERS TO SWIPE ACROSS THE TOUCHPAD SCREEN TO SHOW THE OTHER COLOURS
3 - TO TURN OFF THE BACKLIGHT PRESS FN + F2
KEYBOARD WILL WORK ON ANY DEVICE THAT HAS BLUETOOTH CONNECTON
1 - FOR 1ST TIME CONNECTION TURN BT ON ON THE DEVICE YOUR CONNECTING TO.
2 - ON THE KEYBOARD LONG PRESS THE FN + F3 KEYS AND THE YELLOW INDICATOR WILL BLINK.
3 - ON YOUR DEVICE SELECT THE KEYBOARD TO CONNECT TO THEN THE YELLOW INDICATOR STOPS BLINKING
4 - KEYBOARD WILL NOW BE CONNECTED

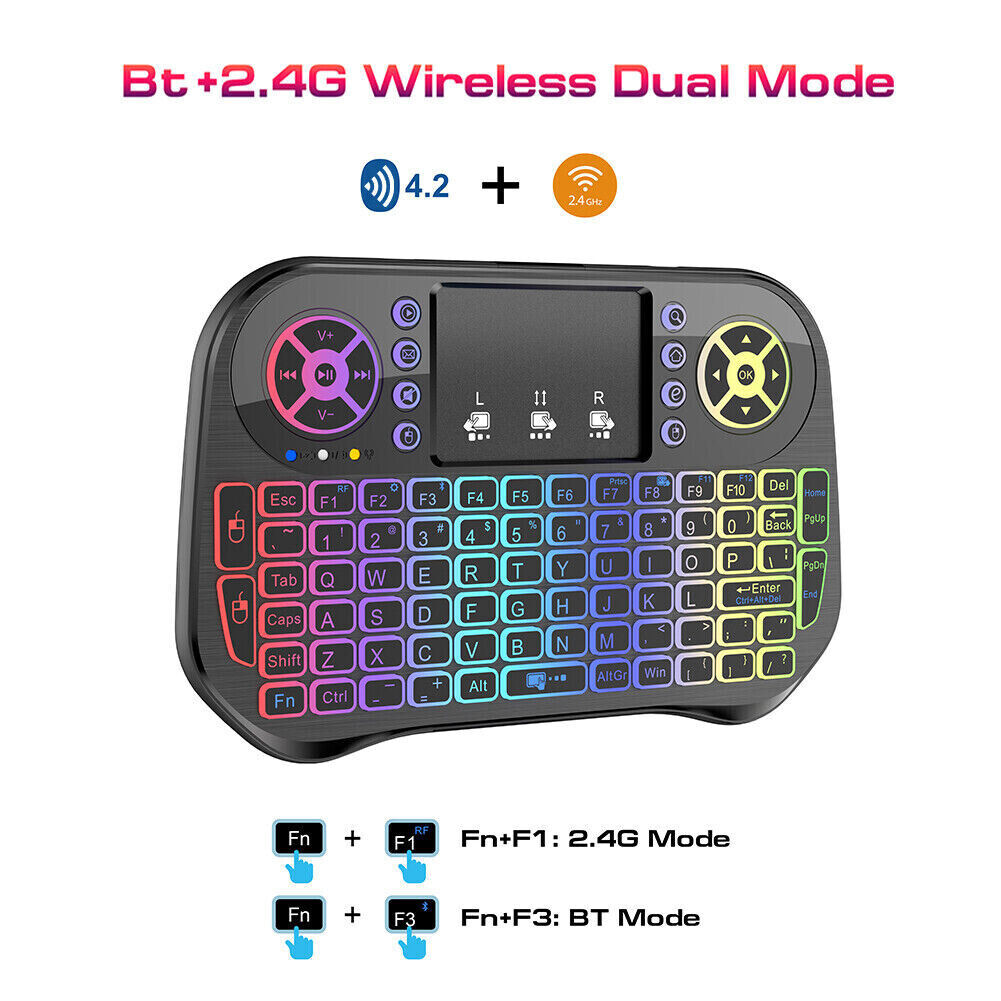

5 - TO SWITCH THE KEYBOARD BACK TO WIRELESS MODE PRESS THE FN+F1 KEYS TOGETHER.
6 - TO SWITCH THE KEYBOARD BACK TO BT MODE PRESS THE FN + F3 KEYS TOGETHER
PLEASE NOTE
THERE IS ALOT OF VARIATIONS OF PCS -TVS AND ANDROID BOXES AND SOME MAY NEED DIFFERENT METHODS OF CONNECTION. PLEASE CHECK YOUR DEVICE IS CAPABLE OF CONNECTING AND USING AN EXT KEYBOARD.
FOR SOME TVS THEY MAY NEED TO BE CONNECTED BY USING THE BLUETOOTH KEYBOARD
PCS - FIRESTICKS - ANDROID BOXES MAY EASILY CONNECT USING THE WIRELESS DONGLE OR BY BLUETOOTH
WE HAVE TESTED THESE KEYBOARDS AND THEY CONNECTED AND WORKED FINE ON
PC RUNNING WIN 10 THEY CONNECTED WITH WIRELESS DONGLE AND BLUETOOTH CONNECTION
NUMEROUS ANDROID BOXES CONNECTED WITH WIRELESS DONGLE AND BLUETOOTH
FIRESTICK USING WIRELESS DONGLE (WITH FIRESTICK USB ADAPTER) AND BLUETOOTH
SAMSUNG MOBILE PHONE USING BLUETOOTH (OTG ADPATER SHOULD BE FINE AS WELL BUT WE DIDNT HAVE ONE TO TEST WITH AT THE TIME OF TESTING)
SAMSUNG 4K SMART TV USING BLUETOOTH CONNECTION
WE ALSO HAVE CUSTOMERS WHO REPORT THEY ARE USING THEM FINE ON DEVICES LIKE TABLETS ETC WITH ADAPTER WHEN NEEDED
ANY QUESTIONS OR CONNECTION ISSUES THEN MESSAGE US AND WE CAN HELP YOU TO SORT ANY ISSUES

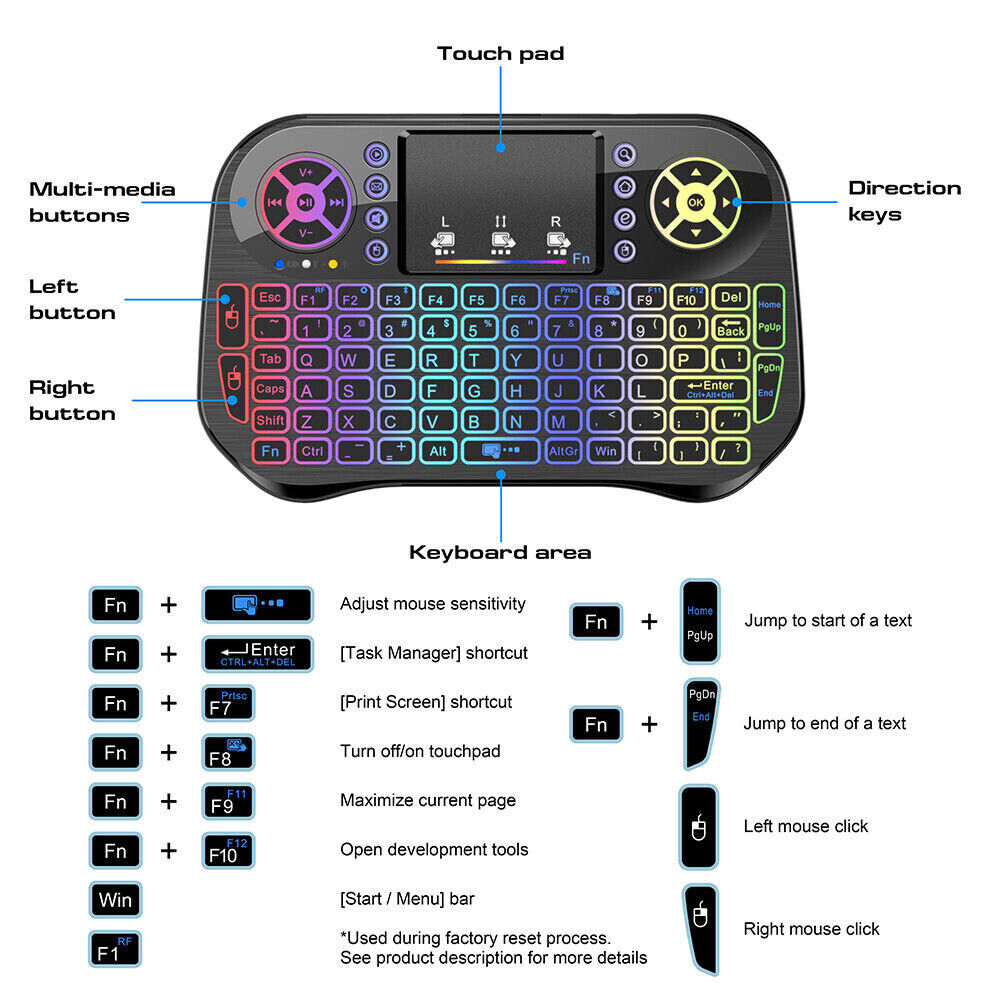

Combination key:
Fn + F2: Open or close the keyboard (backlight / backlight)
Fn + Space: Accelerate mouse movement
Fn + F11: full screen to the browser
Fn + F1 (RF): activation keys
Fn + F8: open or close the touch panel
Fn + sliding Touchpad: customize the backlight color (touch the bottom edge of the pad)
Features
1. 92 keys, 2.4GHz Wireless OR Wireless With Bluetoth Keyboard with Touchpad.
2. Mini QWERTY keyboard with multimedia control keys and PC gaming control keys.
3. Suitable for Google TV, HD player, Set Top Box, Android TV box, Web TV, projector.
4. Maximum operating distance: ≥3m without signal disturbance and no direction limit.
5. With USB interface adapter
6. with Touchpad DIP adjustable functions for match with different size of screen.
7. With the mouse Scroll wheel function
8. TPU keys for convenient typing experience.
9. Languages: English
Specification
Compatible system: Windows 2000/XP/Vista/7/8/9/10, Android - Firestick (bluetooth or adapter if wireless)
Operating range: 15 meters(MAX), without signal disturbance and no direction limit.
Frequency range: 2.403GHz - 2.480GHz
Transmit power: +5db Max
Operating voltage: 3.7V
Operating current: 55mA (on), 1mA (sleep mode)
Charging current: andlt;300mA
Item size: 19 * 10 * 2cm
Item weight: 109g
Package size: 17 * 14.5 * 3.5cm
Package weight: 175g
Packing Contents :
1 X MINI KEYBOARD RETAIL BOXED (box flat pack for postage)
1 X User Manual
1 X WIRELESS DONGLE
1 X RE CHARGEABLE BATTERY
1 X Type-C CHARGING CABLE
